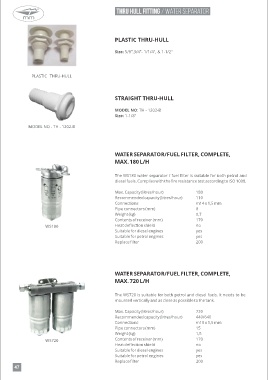

Page 48 - MM TECHNO PLAST CATALOGUE

THRU HULL fitting / water separator
® SWITCHES ®

PLASTIC THRU-HULL
RULE 3 WAY SWITCH 12/24 VDC

Size: 5/8",3/4"- 1/1/4", & 1-1/2"
Controls any pump equipped with automatic float switch
This unit features a black plastic panel, a built in fuse holder & an
internally lighted rocker switch with 3 position.
PLASTIC THRU-HULL
43(12V) / 44 (24V)

STRAIGHT THRU-HULL

MODEL NO: TH - 1202-B
Size: 1-1/8" BATTERY SELECOR SWITCH

MODEL NO - TH - 1202-B
This switch can be used with 6,12, 24 & 32 VDC
Capacity: 250 amps. Continuous 360 amps.
Intermittent, size 5-1/4" x 2-5/8"

WATER SEPARATOR/FUEL FILTER, COMPLETE, 10003
MAX. 180 L/H

The WS180 water separator / fuel filter is suitable for both petrol and
diesel fuels. Complies with the fire resistance test according to ISO 1008.
CIGARETTE LIGHTER 12VDC MAKE
Max. Capacity (litres/hour) 180
Recommended capacity (litres/hour) 110
Connections m14 x 1,5 mm MODEL NO: 31306
Pipe connectors (mm) 8 Controls any pump equipped with automatic float switch
Weight (kg) 0,7 This unit features a black plastic panel, a built in fuse holder & an
Contents of receiver (mm) 170 internally lighted rocker switch with 3 position.
W S180 Heat deflection shield no
Suitable for diesel engines yes
Suitable for petrol engines yes
Replace filter 200

Model 31306

WATER SEPARATOR/FUEL FILTER, COMPLETE,
MAX. 720 L/H

The WS720 is suitable for both petrol and diesel fuels. It needs to be
mounted vertically and as close as possible to the tank.
BRASS CHROME PLATED DRAIN PLUG

Max. Capacity (litres/hour) 720
Recommended capacity (litres/hour) 440/640 Size: 2.5"
Connections m18 x 1,5 mm Weight: 1.300 kgs.
Pipe connectors (mm) 15
Weight (kg) 1,5
W S720 Contents of receiver (mm) 170 SS BRASS
Heat deflection shield no
Suitable for diesel engines yes
Suitable for petrol engines yes
Replace filter 200
48
47 40
