P. 66

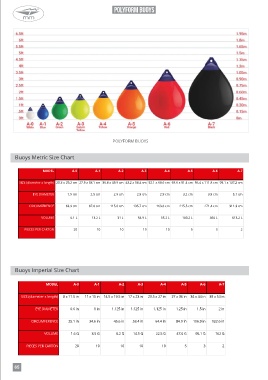

SWITCHYFORM BUOYS
POL POLYFORM
SWITCHFENDER
® ®
POLYFORM BUOYS POLYFORM FENDERS
Buoys Metric Size Chart Fenders Metric Size Chart
MODEL A-0 A-1 A-2 A-3 A-4 A-5 A-6 A-7 MODEL F-1 F-02 F-2 F-3 F-4 F-5 F-6 F-7 F-8 F-10 F-11 F-13
SIZE (diameter x length) 20.3 x 29.2 cm 27.9 x 38.1 cm 36.8 x 49.5 cm 43.2 x 58.4 cm 52.1 x 68.6 cm 68.6 x 91.4 cm 86.4 x 111.8 cm 99.1 x 137.2 cm SIZE (diameter 15.2 x 19.1 x 20.8 x 20.8 x 21.6 x 27.9 x 27.9 x 38.1 x 38.1 x 45.7 x 53.8 x 73.7 x
x length) 61 cm 66 cm 63.5 cm 76.2 cm 102.9 cm 76.2 cm 106.7 cm 104.1 cm 147.3 cm 127 cm 146.1 cm 194.3 cm
EYE DIAMETER 1.5 cm 2.5 cm 2.9 cm 2.9 cm 2.9 cm 3.2 cm 3.8 cm 5.1 cm
EYE DIAMETER 1.8 cm 1.8 cm 2.3 cm 2.3 cm 2.3 cm 2.5 cm 2.5 cm 2.5 cm 2.5 cm 2.5 cm 2.8 cm 3 cm
CIRCUMFERENCE 63.9 cm 87.8 cm 115.8 cm 135.7 cm 163.6 cm 215.5 cm 271.4 cm 311.3 cm
CIRCUMFEREN 47.9 cm 59.9 cm 65.5 cm 65.5 cm 67.9 cm 87.8 cm 87.8 cm 119.7 cm 119.7 cm 143.7 169.2 cm 231.5 cm
CE cm
VOLUME 6.1 L 13.2 L 31 L 54.9 L 85.2 L 180.2 L 360 L 613.2 L
VOLUME 7.2 L 11.7 L 16.3 L 20.4 L 29.1 L 27.6 L 57.2 L 71.2 L 149.9 L 154.4 L 241.1 L 600.4 L
PIECES PER CARTON 20 10 10 10 10 5 3 2
PIECES PER
CARTON 10 10 10 10 5 5 5 5 4 2 3 2
Buoys Imperial Size Chart Fenders Imperial Size Chart
MODEL A-0 A-1 A-2 A-3 A-4 A-5 A-6 A-7 MODEL F-1 F-02 F-2 F-3 F-4 F-5 F-6 F-7 F-8 F-10 F-11 F-13
SIZE (diameter x length) 8 x 11.5 in 11 x 15 in 14.5 x 19.5 in 17 x 23 in 20.5 x 27 in 27 x 36 in 34 x 44 in 39 x 54 in SIZE (diameter x 6 x 24 7.5 x 26 8.2 x 25 8.2 x 30 8.5 x 40.5 11 x 30 11 x 42 15 x 41 15 x 58 18 x 50 21.2 x 57.5 29 x 76.5
length) in in in in in in in in in in in in
EYE DIAMETER 0.6 in 1 in 1.125 in 1.125 in 1.125 in 1.25 in 1.5 in 2 in
EYE DIAMETER 0.7 in 0.7 in 0.9 in 0.9 in 0.9 in 1 in 1 in 1 in 1 in 1 in 1.1 in 1.2 in
CIRCUMFERENCE 25.1 in 34.6 in 45.6 in 53.4 in 64.4 in 84.9 in 106.9 in 122.6 in
CIRCUMFERENCE 18.9 in 23.6 in 25.8 in 25.8 in 26.7 in 34.6 in 34.6 in 47.1 in 47.1 in 56.6 in 66.6 in 91.1 in
VOLUME 1.6 G 3.5 G 8.2 G 14.5 G 22.5 G 47.6 G 95.1 G 162 G VOLUME 1.9 G 3.1 G 4.3 G 5.4 G 7.7 G 7.3 G 15.1 G 18.8 G 39.6 G 33.8 G 63.7 G 158.6 G
PIECES PER CARTON 20 10 10 10 10 5 3 2 PIECES PER CARTON 10 10 10 10 5 5 5 5 4 2 3 2
