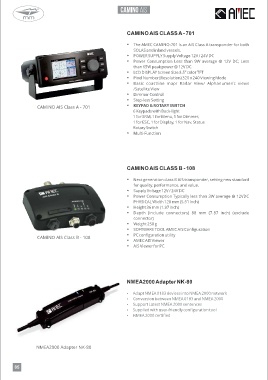

camino ais
® ®
CAMINO AIS Class A - 701
CAMINO AIS Class B - 108
NMEA2000 Adapter NK-80
85
DIGITAL YACHT AIS
CAMINO AIS CLASS A - 701 DIGITAL YACHT AIS CLASS A CLA2000
Ÿ The AMEC CAMINO-701 is an AIS Class A transponder for both Ÿ Globally approved Class A AIS transponder
SOLAS and inland vessels. Ÿ High resolution, 800 x 480 pixel 5” colour display (MKD) with easy to use,
Ÿ POWER SUPPLY Supply Voltage 12V / 24V DC fast user interface
Ÿ Power Consumption Less than 9W average @ 12V DC; Less Ÿ Bracket or flush mount – waterproof to IPX7
than 65W peak power @ 12V DC Integrated GPS with external antenna (supplied) or utilise external NMEA
Ÿ LCD DISPLAY Screen Size 3.5” color TFT Ÿ feed (user selectable)
Ÿ Pixel Number (Resolution) 320 x 240 Viewing Mode Ÿ 3 x NMEA 0183 interface (bi-directional for plotter, ECDIS, radar etc)
Ÿ Basic coastline map/ Radar View/ Alphanumeric views Ÿ 3 x sensor input ports (eg BlueBoard, external GNSS, gyro etc)
/Satellite View NMEA 2000 interface
Ÿ Dimmer Control Ÿ Ÿ Built in SD card slot for AIS data port logging or C-Map MAX mapping
Ÿ Step-less Setting capability with optional C-Map data card
Ÿ KEYPAD & ROTARY SWITCH
6 Keypads with Back-light
1 for SRM, 1 for Menu, 1 for Dimmer,
1 for ESC, 1 for Display, 1 for Nav. Status DIGITAL YACHT AIS CLASS A CLA2000
Rotary Switch
Ÿ Multi-Function
DIGITAL YACHT AIS CLASS B NOMAD
CAMINO AIS CLASS B - 108 Ÿ Opens up new “portable navigation” market with the 1st portable AIS
transponder
Ÿ Next generation class B AIS transponder, setting new standard Ÿ Applications include charter and delivery skippers, pilots, tenders and
for quality, performance, and value. also a back up for main systems
Ÿ Supply Voltage 12V / 24V DC Ÿ Can be utilised as AIS/GPS receive only
Ÿ Power Consumption Typically less than 3W average @ 12VDC Ÿ Powered via USB – connect to PC, USB outlet or USB battery pack for
PHYSICAL Width 128 mm (5.51 inch) power
Ÿ Height 36 mm (1.97 inch) Ÿ Wireless interface for iPad, tablet or PC/MAC
Ÿ Depth (include connectors) 88 mm (7.87 inch) (exclude Ÿ Built in high performance GPS
connector) Ÿ Supplied with portable VHF antenna with sucker cup mount
Ÿ Weight 250 g Ÿ Can be used as AIS receiver only (if no MMSI programmed) or if silent
Ÿ SOFTWARE TOOL AMEC AIS Configuration mode selected
Ÿ PC configuration utility Ÿ Programmable via PC, Mac and app
DIGITAL YACHT AIS CLASS B NOMAD
Ÿ AMEC AIS Viewer Ÿ Choose your favourite charting and AIS app!
Ÿ AIS Viewer for PC
NMEA2000 Adapter NK-80 DIGITAL YACHT PILOT PLUG USB CABLE
Ÿ Adapt NMEA 0183 devices into NMEA 2000 network
Ÿ Conversion between NMEA 0183 and NMEA 2000 Ÿ Fully NMEA 0183 compatible (differential Rs422)
Ÿ Support Latest NMEA 2000 sentences Ÿ 6ft Cable
Ÿ Supplied with user-friendly configuration tool Ÿ Conforms to the IMO SN/Circ.227
Ÿ NMEA 2000 certified Ÿ Bidirectional data connection
Ÿ Low cost simple solution
Ÿ Built-in indicator lights flash upon receiving and transmitting data
Ÿ Easy plug and play connection to most computers (Windows/Mac/LINUX)
Ÿ Comes with a driver CD and a free copy of Smarter Track Lite
Ÿ AIS software
DIGITAL YACHT PILOT PLUG USB CABLE
