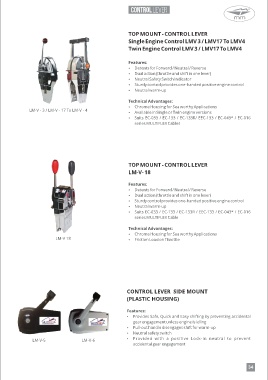

Page 35 - MM TECHNO PLAST CATALOGUE

INBOARD HYDRAULICS STEERING SYSTEM control lever
® ®

TOP MOUNT - CONTROL LEVER
STAINLESS STEEL STEERING WHEEL (STANDARD SIZE) Single Engine Control LMV 3 / LMV17 To LMV4
Twin Engine Control LMV 3 / LMV17 To LMV4
Ÿ Made from high strength Stainless Steel
Ÿ Five spokes Design
Features:
Ÿ Detents for Forward / Neutral / Reverse
Ÿ Dual action (throttle and shift in one lever)
Ÿ Neutral Safety Switch Indicator
Ÿ Sturdy control provides one-handed positive engine control
Ÿ Neutral warm-up

PISTON HYDRAULIC PUMP Technical Advantages:
Ÿ Chrome Housing for Sea worthy Applications
LM-V - 3 / LM-V - 17 To LM-V - 4 Available in Single or Twin engine versions
Ÿ Robust Construction Ÿ Suits EC-033 / EC-133 / EC-133R/ EEC-133 / EC-043* / EC-016
Ÿ Marine Grade Aluminium Die Casted Body Ÿ series MULTIFLEX Cables
Ÿ Inbuilt Lock Valve

Application Guide – Single Engine:

Model No. System Basic Components Wheel turns Torque in Port Suitable Steering
Cylinder Helm Pump Lock to Lock Kgm Threads Wheel Diameter TOP MOUNT - CONTROL LEVER
LM-V- 18
IBHS-43-50-ST LM-IC-50-ST LM-HP-43 8.4 182/156 ½” 500 mm
IBHS-63-63-ST LM-IC-63-ST LM-HP-63 9.9 268 ½” 600 mm
IBHS-75-75-ST LM-IC-75-ST LM-HP-75 11.6 373 ½” 600 mm Features:
IBHS-86-75-ST LM-IC-75-ST LM-HP-86 9.8 373 ½” 600 mm Ÿ Detents for Forward / Neutral / Reverse
Ÿ Dual action (throttle and shift in one lever)
Ÿ Sturdy control provides one-handed positive engine control
Ÿ Neutral warm-up
INBOARD HYDRUALIC CYLINDER Ÿ Suits EC-033 / EC-133 / EC-133R / EEC-133 / EC-043* / EC-016
series MULTIFLEX Cable
Steel Cylinder
Technical Advantages:
S.N. Part No. Torque Output Force Volume Tiller Length Stroke Pressure LM-V 18 Ÿ Chrome Housing for Sea worthy Applications
(Kg-m) (Rg-f) (cc) (mm) (mm) (Bar) Ÿ Friction Load on Throttle
1 LM-IC-50-ST1 182 1108 356 200 225 70
2 156 950 356 200 225 60
3 LM-IC-63-ST 268 1501 688 218 250 60
4 LM-IC-75-ST 373 1897 869 240 275 60
5 LM-MM-75-ST 373 1897 869 240 275 60

CONTROL LEVER SIDE MOUNT
(PLASTIC HOUSING)

40 mm Shaft LM-IC-75-ST Features:
Ÿ Provides Safe, Quick and Easy shifting by preventing accidental
gear engagement unless engine is idling
Ÿ Pull-out handle disengages shift for warm-up
Ÿ Neutral safety switch
LM-V-5 LM-V-6 Ÿ Provided with a positive Lock-in neutral to prevent
accidental gear engagement

40 mm Shaft
33 LM-MM-75-ST 34
