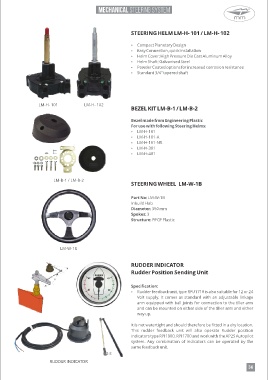

HYDRAULIC LEVER MECHANICAL STEERING SYSTEM
® ®

STEERING HELM LM-H- 101 / LM-H- 102

Ÿ Compact Planetary Design
HYDRAULIC SINGLE LEVER Ÿ Easy Connection, quick installation
Ÿ Helm Cover: High Pressure Die Cast Aluminum Alloy
Ÿ Helm Shaft: Galvanised Steel
Single lever / controller Powder Coated options for increased corrosion resistance
Lever Valve Ÿ
Ÿ Standard 3/4” tapered shaft

LM-H- 101 LM-H- 102
HYDRAULIC SINGLE LEVER BEZEL KIT LM-B-1 / LM-B-2

Bezel made from Engineering Plastic
For use with following Steering Helms:
Ÿ LM-H-101
Ÿ LM-H-101-A
HYDRAULIC HOSE PIPE Ÿ LM-H-101-NR
Ÿ LM-H-301
Size: ½”, ⅝”, ¾” & 1” Ÿ LM-H-401
Ÿ DIN-20022-EN853-15N
Ÿ 160 BAR/1890 PSI-302011
Ÿ 130 BAR/1890 PSI-302011
HYDRAULIC HOSE PIPE LM-B-1 / LM-B-2
STEERING WHEEL LM-W-1B

Part No: LM-W-1B
Inbuild Hub
Diameter: 350 mm
Spokes: 3
Structure: PPCP Plastic
OIL TANK

Capacity 200 ltrs
LM-W-1B

OIL TANK
RUDDER INDICATOR
Rudder Position Sending Unit

Specification:
Ÿ Rudder feedback unit, type RFU1718 is also suitable for 12 or 24
Volt supply. It comes as standard with an adjustable linkage
HAND WINCH arm equipped with ball joints for connection to the tiller arm
and can be mounted on either side of the tiller arm and either
way up.
Hand operator wall mounting winch with lock
It is not watertight and should therefore be fitted in a dry location.
Hand winch size: 0.5 Ton, 1 Ton, 1.5 Ton, 2 Ton
This rudder feedback unit will also operate Rudder position
indicators type RPI1800, RPI1700 and work with the AP2S Autopilot
system. Any combination of indicators can be operated by the
same feedback unit.

HAND WINCH RUDDER INDICATOR
